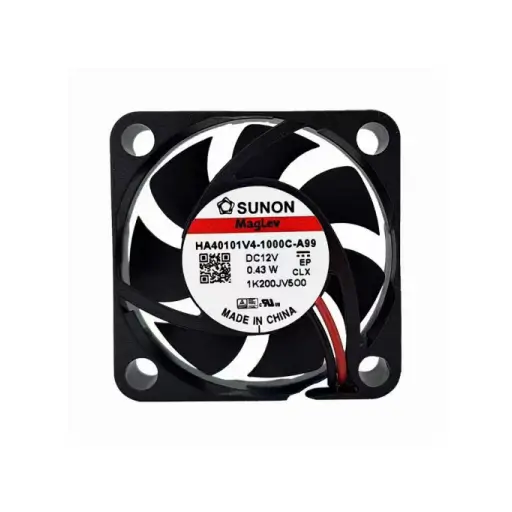

1. MECHANICAL CHARACTERISTIC
|
| MOTOR DESIGN |
Single phase, 4-poles Brushless DC motor. |
| BEARING SYSTEM |
Vapo bearing system |
| MATERIALS OF FRAME |
Thermoplastic PBT of UL 94V-0 |
| MATERIALS OF FAN BLADE |
Thermoplastic PBT of UL 94V-0 |
| DIRECTION OF ROTATION |
Counter-clockwise viewed from front of fan blade |
| MOUNTING HOLES |
Diameter 4.3 mm in 4 holes |
| WEIGHT |
15.4 g |
2. ELECTRIC CHARACTERISTIC
|
| RATED VOLTAGE |
12 VDC |
| RATED CURRENT |
28 mA / Max. 37 mA |
| RATED POWER CONSUMPTION |
0.34 WATTS / Max. 0.45 WATTS |
| SAFETY POWER CONSUMPTION |
0.43 WATTS |
| OPERATING VOLTAGE RANGE |
3.7~13.8 VDC |
| STARTING VOLTAGE |
3.7 VDC (25 deg. C POWER ON/OFF) |
| OPERATING TEMPERATURE RANGE |
-10 to + 70 deg. C |
| STORAGE TEMPERATURE RANGE |
-40 to + 70 deg. C |
3. PERFORMANCE CHARACTERISTIC
|
|
| RATED SPEED |
5000 RPM ± 15% at rated voltage |
| AIR FLOW |
5.4 CFM |
| STATIC PRESSURE |
0.09 Inch-H2O |
| ACOUSTIC NOISE |
15.7 dB(A) |
| INSULATION CLASS |
UL Class A |
| INSULATION RESISTANCE |
10M ohm at 500 VDC between internal stator and |
| PLASTIC HOUSING |
lead wire (+) |
| DIELECTRIC STRENGTH |
Applied AC 500 V for one minute or AC 600 V for 2 |
| Seconds between housing and lead wire (+) |
| LIFE EXPECTANCY |
60,000 Hours at 40 deg. C, 65% humidity, 90% CL |
| PROTECTION |
Automatic Restart |
| Note: In a situation where the fan is locked by an external |
| force while the electricity is on, an increase in coil |
| temperature will be prevented by temporarily turning off |
| the electrical power to the motor. The fan will automatically |
| restart when the locked rotor condition is released. |
| Polarity Protection |
