Product Details

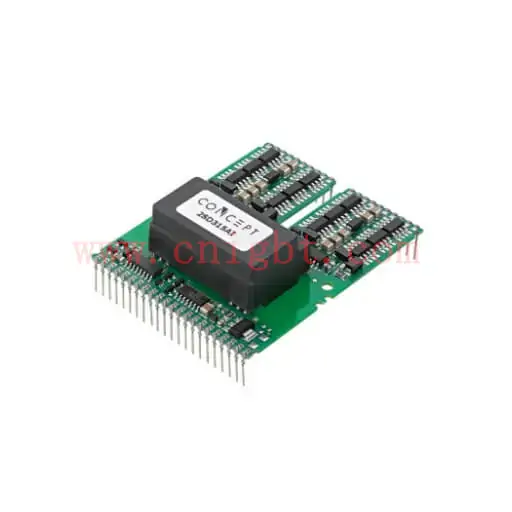

The 2SD315AI series comprises 2-channel SCALE-1 driver cores for IGBTs up to 1700 V (optionally to 3300 V). Its gate current capability of ¡À 15A is optimized for IGBTs from 200 A to typically 800 A. The two drive channels feature electrical isolation between the control electronics and the power section. The gate voltage is 0 / +15 V or ¡À15 V.

Each channel is equipped with a programmable Vce-monitoring function for protection against short circuit and overcurrent.

The driver is equipped with the award-winning CONCEPT SCALE-1 driver chipset and can be operated in two modes: either with two independent driver channels or as a half-bridge driver with internal dead-time generation.

The integrated electrically-isolated DC/DC converter supplies a drive power of 3 W per channel.

Highest Reliability
SCALE-1 drivers have been established as an industrial standard since 1999, and the 2SD315AI has been proven in numerous industrial and traction applications.

Recommendation
Do not use the 2SD315AI-25 or 2SD315AI-33 for new designs. Please use the 2SC0535T for new designs.
Key Features

Suitable for IGBTs up to 3300V
Interface with 5V…15V logic level
Schmitt-trigger inputs
Short-circuit and overcurrent protection
Supply undervoltage lockout
Isolated DC/DC converter
Signal transformer isolation
Isolated status feedback
Reliable, long service life
