Product Details

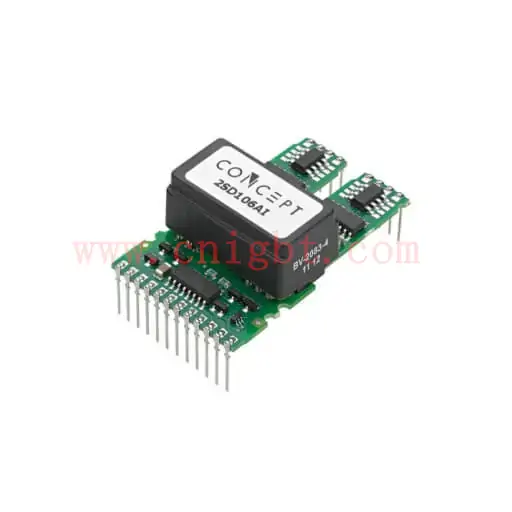

The 2SD106AI series comprises 2-channel SCALE-1 driver cores for IGBTs up to 1700 V. The gate current capability of ¡À6 A is optimized for IGBTs from 50 A to typically 200 A. The two drive channels feature electrical isolation between the control electronics and the power section. Gate voltage is ¡À15 V.

Each channel is equipped with a programmable Vce-monitoring function for protection against short circuit and overcurrent.

The driver is equipped with the award-winning CONCEPT SCALE-1 driver chipset and can be operated in two modes: either with two independent driver channels or as a half-bridge driver with internal dead-time generation.

The integrated, electrically-isolated DC/DC converter supplies a drive power of 1 W per channel.

Highest Reliability
SCALE-1 drivers have been established as an industrial standard since 1999, and the 2SD106AI has been proven in numerous industrial and rail applications.
Key Features

Suitable for IGBTs up to 1700V
Interface with 5V…15V logic level
Schmitt-trigger inputs
Short-circuit and overcurrent protection
Supply undervoltage lockout
Isolated DC/DC converter
Signal transformer isolation
Isolated status feedback
Reliable, long service life
