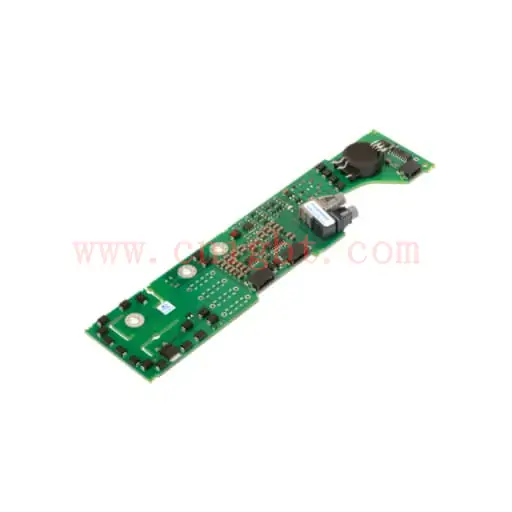

The 1SP0635V2A0D SCALE-2 Plug-and-Play gate driver is a compact single channel intelligent gate driver designed to support a range of IGBT modules. It features a versatile fiber-optic interface.

The 1SP0635V2A0D is designed to work with an isolated DC-DC converter ISO6125R-33, which needs to be purchased separately as it is not integrated into the driver.

Power Integrations¡¯ Dynamic Advanced Active Clamping allows an extended DC-link voltage range to support the IGBT off-state for up to 60 seconds. This is ideal for railway and regenerating applications.
Highly Integrated, Compact Footprint

Ready-to-use gate driver solution for power modules up to 3300 V blocking voltage
Single-channel gate driver
35 A peak output gate current
3 W output power at maximum operating temperature
Supports parallel connection of up to four power modules
-40 ¡ãC to +85 ¡ãC operating ambient temperature range
Optical status indicator

Protection / Safety Features

Short-circuit protection
Dynamic Advanced Active Clamping (DA2C)
Undervoltage lock-out (UVLO) protection
NTC temperature sensing
DC-link voltage measurement at 75 kHz
Gate monitoring
Double-sided conformally coated (ELPEGUARD SL 1307 FLZ/4 from Lackwerke Peters)
